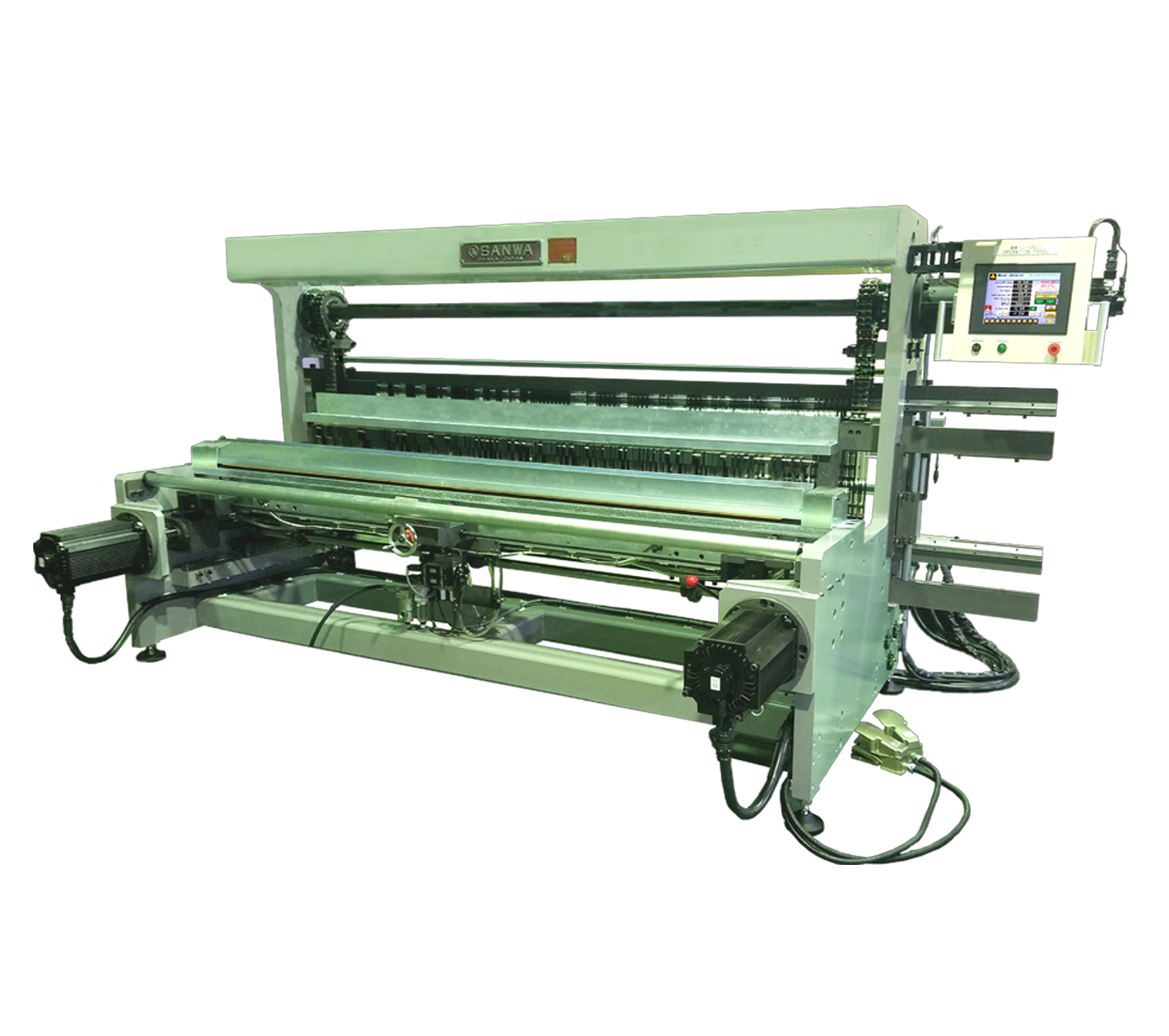

MODEL:MW-S&L Semi Automatic Crimped Wire Mesh Weaving Machine
Feature
Numerical Control
- The Control Regulation is NC System (With Numerical Control)
- The behavior of each part ( can behave separately )
- You can make machine recall each data when you produce same mesh that you have done before without adjustment becausethe machine can memorize working for each parts.
Heddle
- The opening size of heddle = Can set easily 0 mm～200 mm by touch screen panel.
- The changing timing of heddle frame = Can change easily by touch screen panel.
Sley （Reed）
- The pitch operation = It is very convenience to use this before continuous operation and just before the end of warp wire . ( Decrease of waste for warp wire )
- Can change the stroke of sley and weave with keep to stop its behavior of crimped wire mesh. ( Can change the stroke of sley by touch screen panel )
- Can change the speed of just sley depend on the kind of crimped wire mesh.
Needle
- The needle can insert into place of crimped wire mesh with getting out the timing electrically absolutely .
- The injury of needle decrease compare with previous model constitutionally.
At the time of operating abnormality
- When the operating abnormality happened , it will be shown by touch screen panel where is the problem.

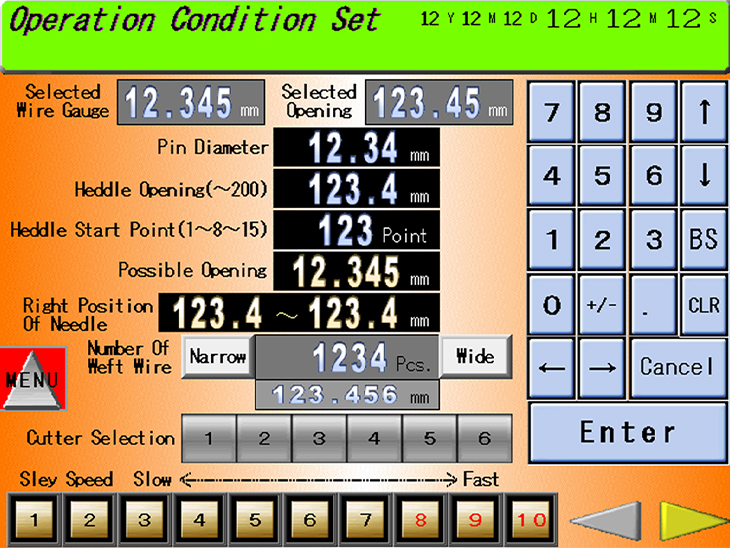

Example of Touch Panel (Screen)
Specifications
MW-S-2100
Wire Diameter
Φ1㎜～Φ6㎜
Mesh Size
1.5mm ~ 100mm (Aperture)
Fabric Width
~ 2,100mm
Motor(All Servo Motor)
Sley 5.5KW x 2
Heddle 2KW x 1
Heddle 2KW x 1
Compressor
7.5KW x 1 (Customer's Duty)
NEEDLE (With 2 kinds)
Φ1.5/1.8/2.3/3.2 mm (Customer's Choice)
MW-S-2500
Wire Diameter
Φ1㎜～Φ6㎜
Mesh Size
1.5mm ~ 100mm (Aperture)
Fabric Width
~ 2,500mm
Motor(All Servo Motor)
Sley 7.5KW x 2
Heddle 3KW x 1
Heddle 3KW x 1
Compressor
7.5KW x 1 (Customer's Duty)
NEEDLE (With 2 kinds)
Φ1.5/1.8/2.3/3.2 mm (Customer's Choice)
MW-L-2100
Wire Diameter
Φ1㎜～Φ12㎜
Mesh Size
1.5mm ~ 100mm (Aperture)
Fabric Width
~ 2,100mm
Motor(All Servo Motor)
Sley 11KW x 2
Heddle 4.4KW x 1
Heddle 4.4KW x 1
Compressor
7.5KW x 1 (Customer's Duty)
NEEDLE (With 2 kinds)
Φ1.5/1.8/2.3/3.2/6.0 mm (Customer's Choice)
MW-L-2500
Wire Diameter
Φ1㎜～Φ12㎜
Mesh Size
1.5mm ~ 100mm (Aperture)
Fabric Width
~ 2,500mm
Motor(All Servo Motor)
Sley 15KW x 2
Heddle 5.5KW x 1
Heddle 5.5KW x 1
Compressor
7.5KW x 1 (Customer's Duty)
NEEDLE (With 2 kinds)
Φ1.5/1.8/2.3/3.2/6.0 mm (Customer's Choice)
