MODEL:PC-30 Fully Automatic Crimping Machine

Can freely be set up to a max. 45m/min. from a digital display.

Set on a counter. The main shaft is driven by two -- upper and lower -- strong a servomotors, thus obtain high-precision measurement.

You can cut anywhere you want to cut, which was not possible with earlier machines, therefore you do not need to cut the wire again in another process. (Material loss is reduced.) (This feature is particularly effective with flat top type.)

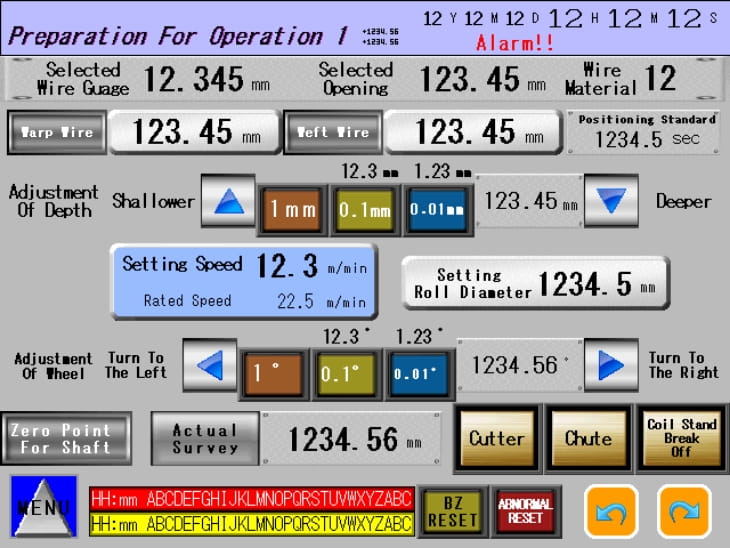

The crimping wheel can be moved up and down by servomotor and the depth can be adjust in 1/100mm increments from a digital display, and it can be recorded.

A servomotor is installed on reach shaft of the crimping wheel. therefore there is no extra mechanical clearance. Moreover, thanks to inverter control and self-propelled coil stand, the crimping speed and wire feeding speed are electrically synchronized only by entering the coil diameter and so on, resulting in high-precision crimping.

The balance can be easily adjust and recorded, therefore you can immediately and accurately crimp using recorded data.

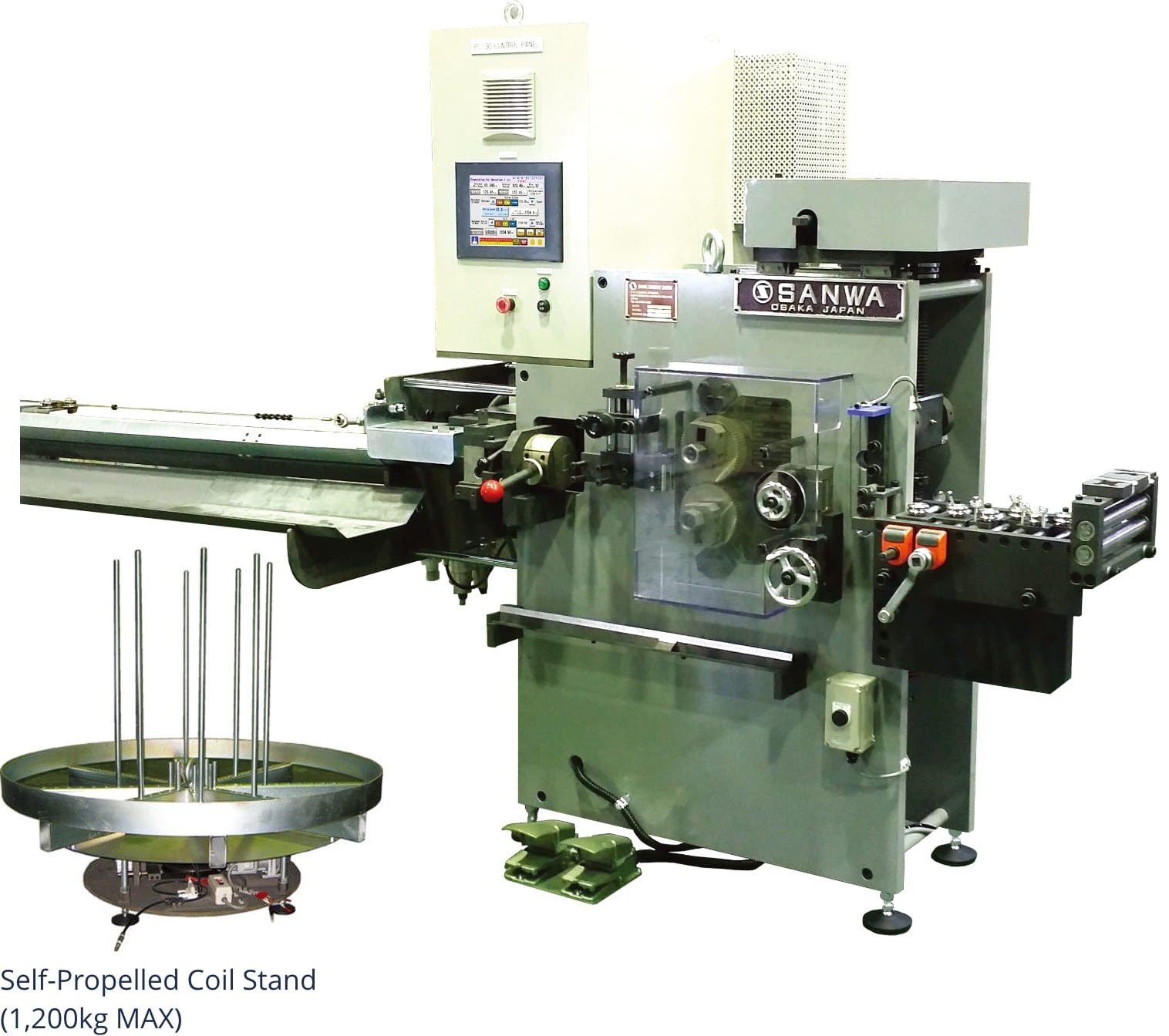

The coil stand is self-propelled, can be used with coils of max. 1,200kg and supports both right -and left-handed coils.

• When the preset crimped wire count is reached
• When materials run out
• When any trouble such as tangled materials occurs. (the trouble area will be displayed.)

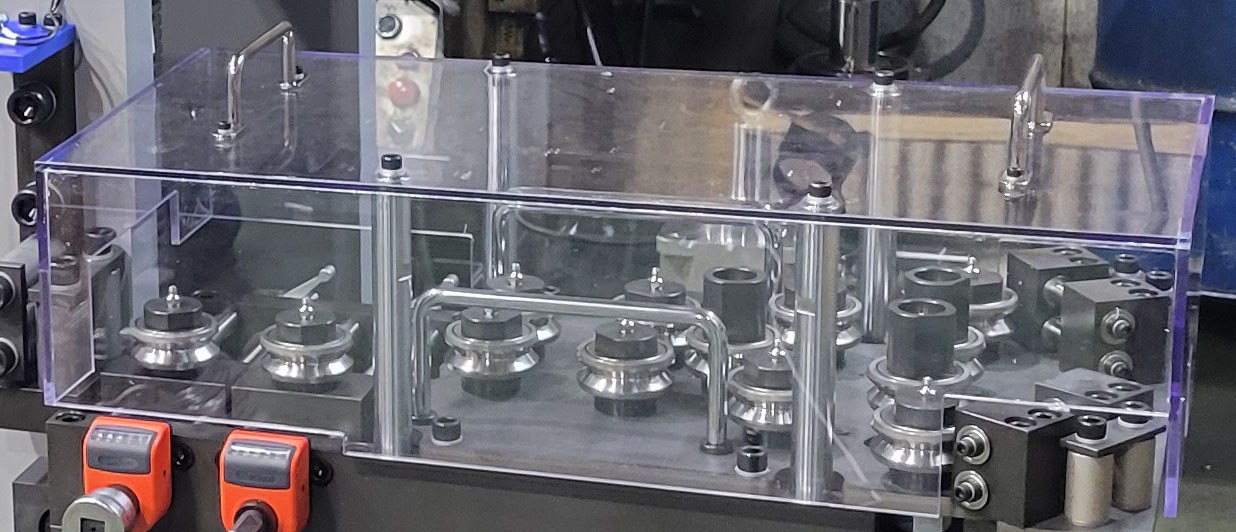

The covers for the main moving parts are made of transparent polycarbonate, allowing clear visibility of the internal mechanisms even when the covers are installed.
In addition, if a cover is opened during operation, the machine will
automatically stop by means of an interlock mechanism.
